KJ-T180-AU-B

Price on Application

Specification Sheets

KJ Digital Series

Product Description

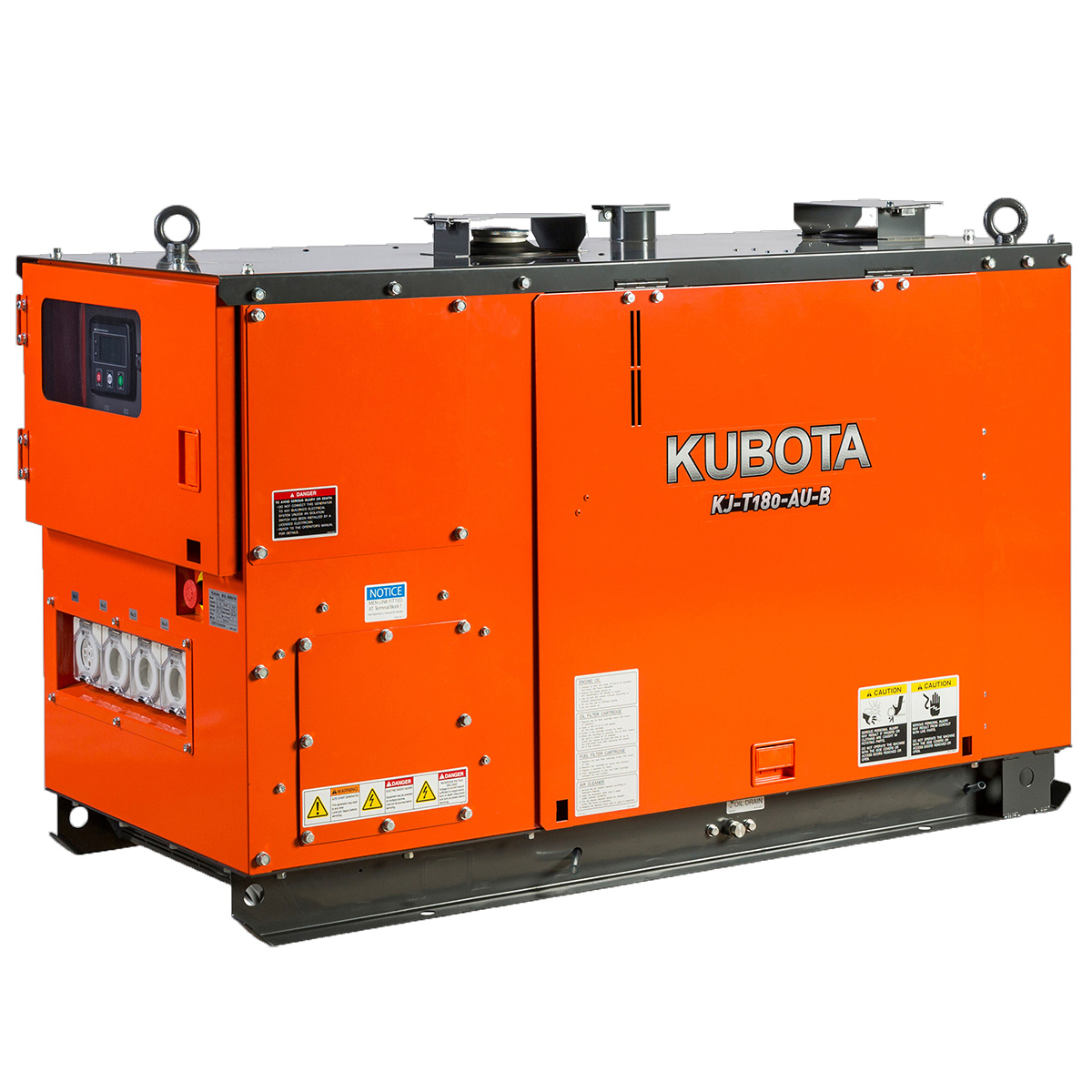

Kubota KJ-T180-AU-B Four Pole, Fully Cabinet-Style Single Phase Diesel Generator.

The KJ Digital series of diesel generators provides a much quieter, more efficient and longer service life machine, for applications where you need safe and economical electrical power.kubota-logo

  • Cleaner Power: The engines used in the KJ series incorporates the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions
  • Dependable Power: The brushless, self-excited type alternator is designed to deliver high quality power
  • Quieter Power: Sound levels at full load and no load are minimised due to world renowned Kubota technology
  • Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems, and all rotating parts are enclosed in a sturdy enclosure

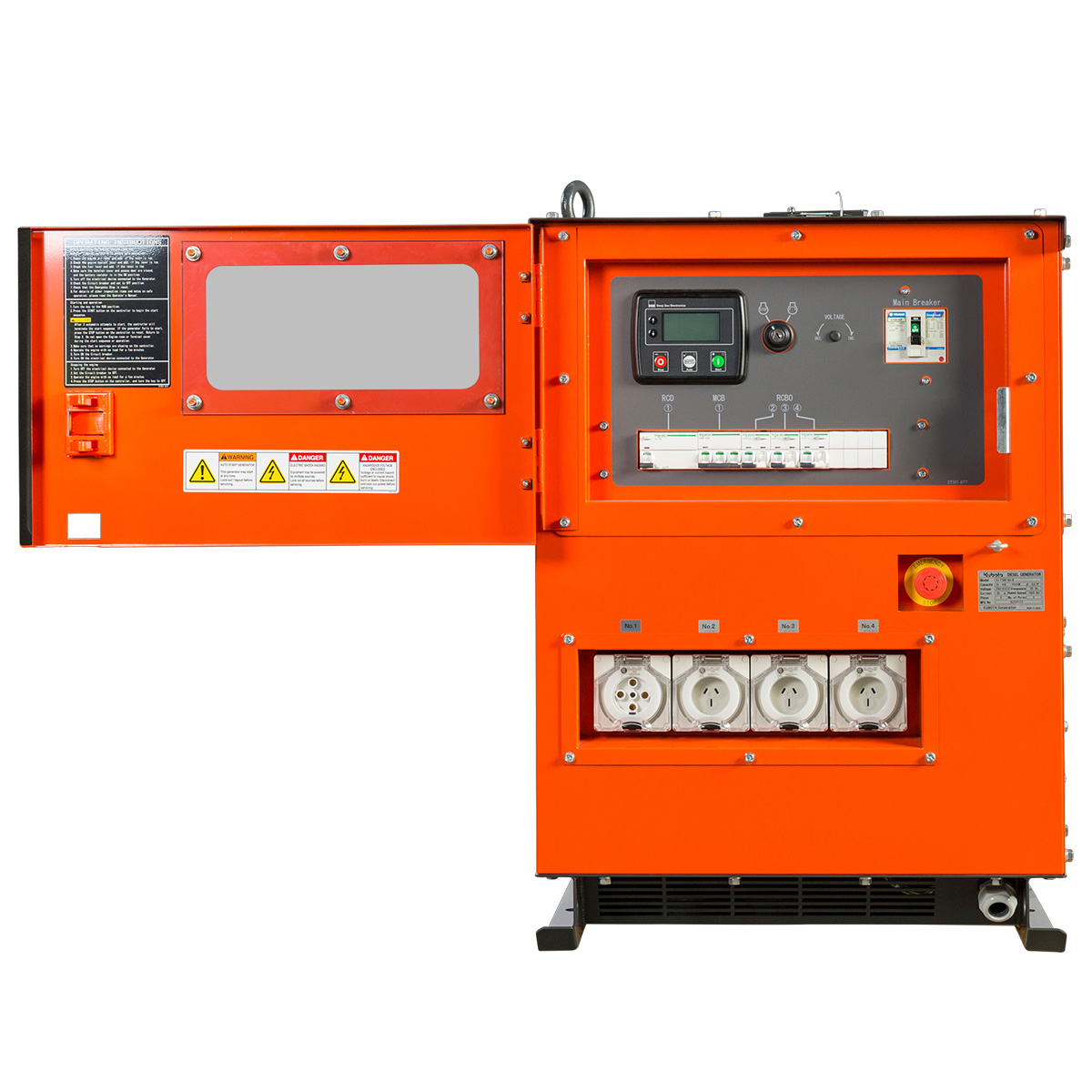

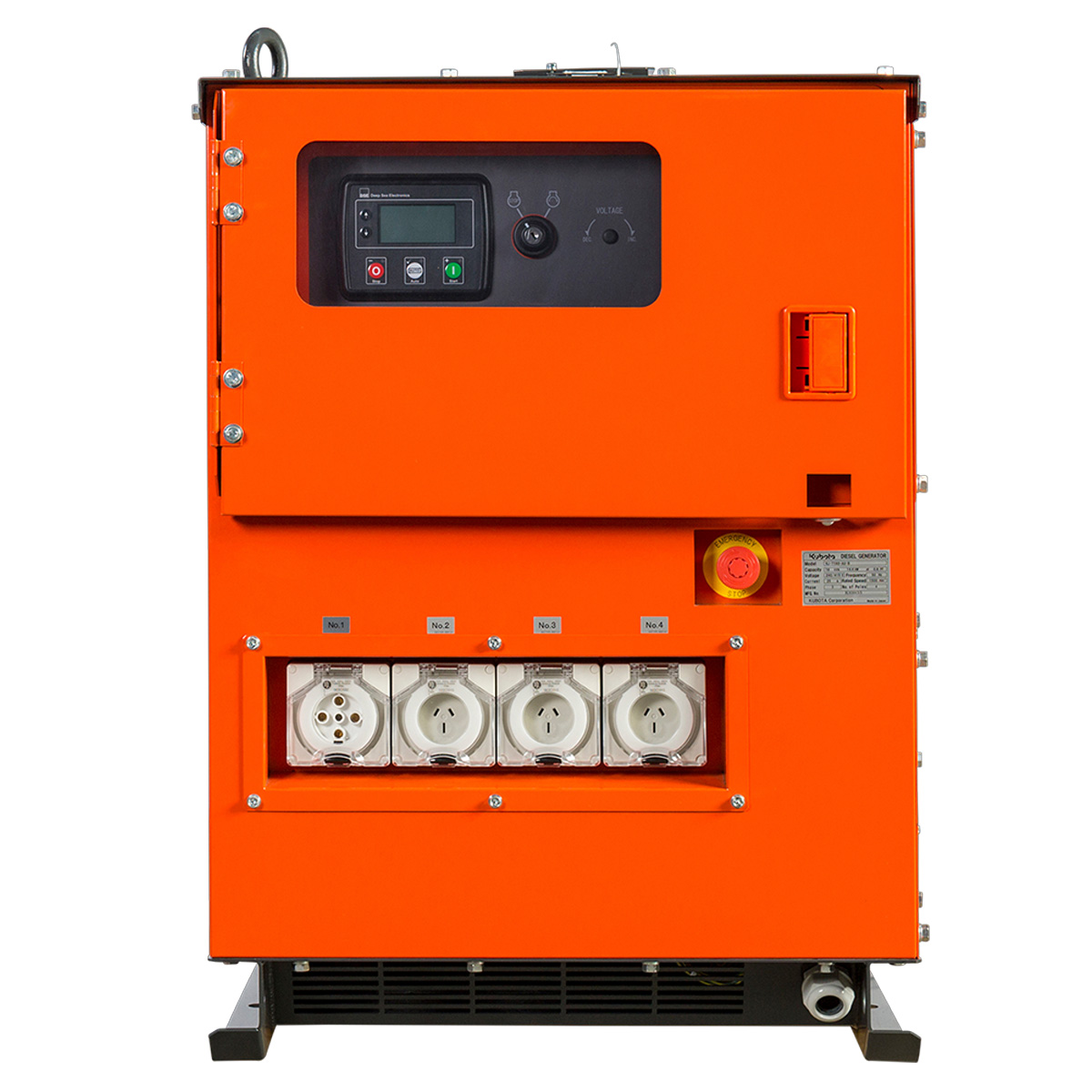

  • Easy to Use: Digital control panel makes the set easy to use
  • Simple Maintenance: Oil, water and filters are located on one side of the machine for ease of maintenance

SPECIFICATIONS

Set –
Diesel Fuel Tank Cap 37 L
Operating hrs 7.0 @ Full Load
Start System Electric/Auto
Weight 505kgs
Dimensions 1488mm x 650mm x 971mm

Engine –
Model V2203
Type Vertical Water Cooled Diesel Engine
Displacement 2197cc
Cylinders 4
Bore & Stroke 87mm x 92.4mm
Continuous Rated Output 16.9kW (22.6hp)

Alternator –
Type Revolving Field, Self Excited
Voltage 240/415
Frequency 50Hz
Power Factor 0.8
Poles 4
Voltage Regulation AVR
